Read two scales simultaneously
Key Features
- Easy-to-read dual °F/°C scales provide enhanced flexibility
- Anti-parallax dished dial for superior readability
- Durable, all-welded stainless steel construction for demanding environments
- Hermetically sealed case prevents dial fogging, moisture ingress, interior corrosion, and coil freeze-up
- Rugged NEMA 4X/IP66 protection
- Recalibratable using the external reset screw
- ±1% full-scale accuracy according to ASME B40.200 (B40.3 Grade A)
- 3" diameter dial
- Durable 12" long stainless steel stem
- Temperature range: 0 to 250°F (–20 to 120°C)
- 5-year warranty
More About This Item

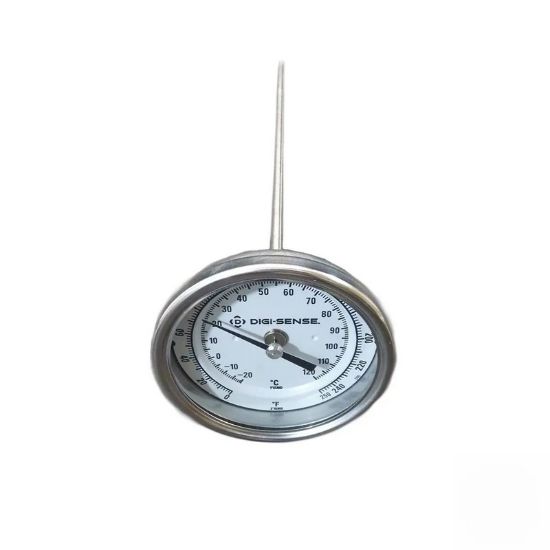

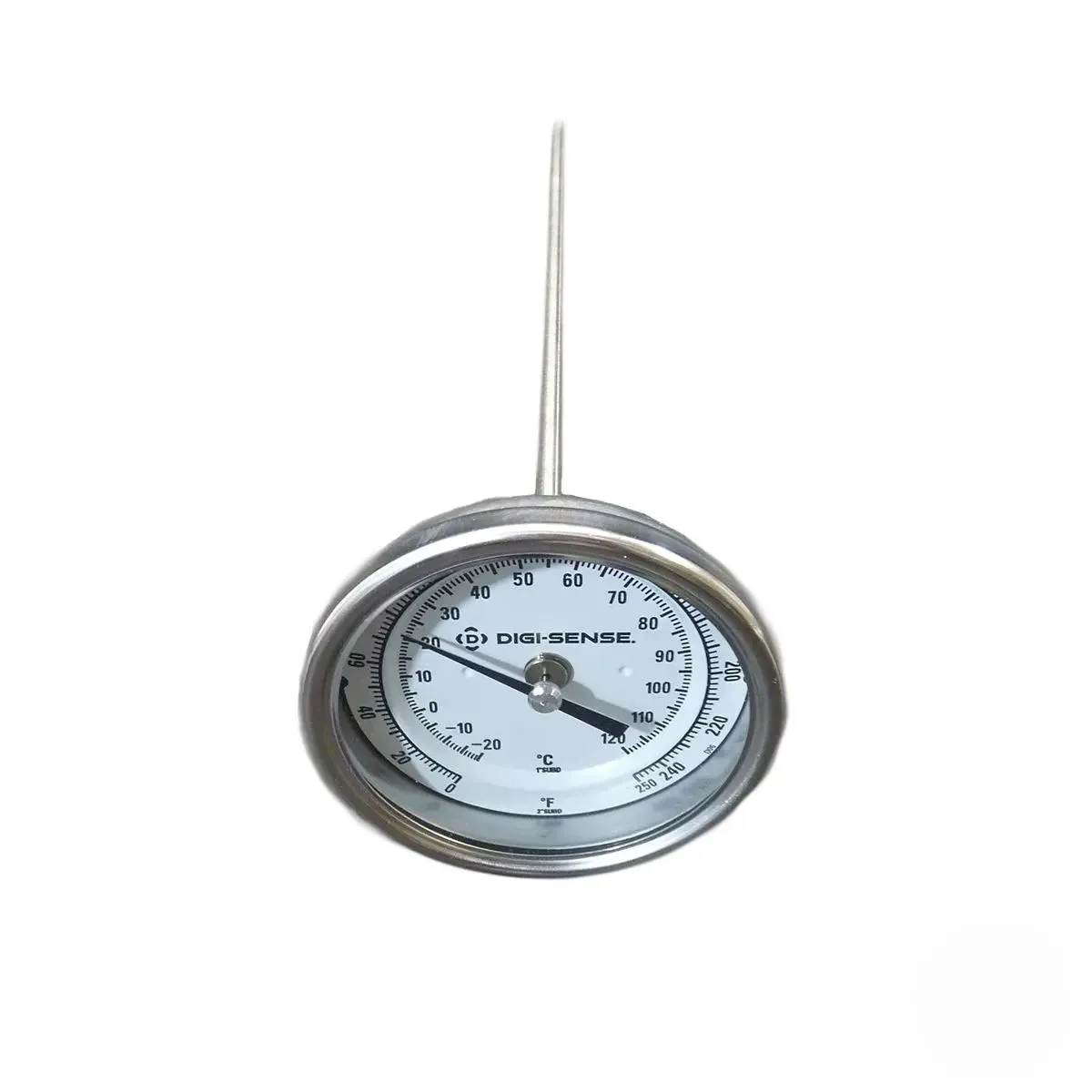

The Cole-Parmer® industrial bimetal thermometers feature NEMA 4X/IP66 protection for demanding applications. Accuracy is ±1% of full scale when the stem is immersed 2" in liquids or 4" in gases. For models with a 2.5" stem length, the stem should be immersed 2" in gases. Stem length is measured from the top of the threads to the bottom of the stem tip. The stem diameter is 0.25" with a ½" NPT(M) back connection. The maximum overtemperature for thermometers with a maximum temperature of 250°F is 100% of span, while thermometers with a maximum temperature of 550°F have a maximum overtemperature of 50% of span. The ambient temperature range is –40 to 200°F (–40 to 93°C).
